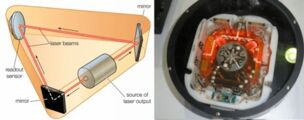

リングレーザージャイロの原理図。
Ring laser gyro principle diagram
プリズムは単一のレーザー出力を左と右に分割します。
The prism splits the single laser output into left and right beams.
右側の光は右側の鏡によって反射されます。
The light on the right is reflected by the right mirror.
左側の光は左側の鏡によって反射されます。
The light on the left is reflected by the left mirror.
2 つの光線が 1 つの読み取りセンサーに到達します。
Two beams of light reach one reading sensor.
ーー
リングレーザージャイロを地面に置きます。
Place the Ring Laser Gyro on the ground.
すると、
Then,
同心円は非常にゆっくりと広がったり縮小したりします。
The concentric circles diverge or shrink very slowly.
つまり、
In other words,
ジャイロ装置は地球の自転を感知します。
The gyro device senses the rotation of the Earth.
ーー
このことから、次のことがわかります。
From this, we can see the following:
光の伝播の標準座標。
Standard coordinates for light propagation.
it is.
リングレーザージャイロ自体は標準座標系ではありません。
The ring laser gyro itself is not in a standard coordinate system.
地球の表面も標準座標ではありません。
The Earth's surface is not in standard coordinates either.
標準座標系は別のものです。
The standard coordinate system is something else.
ーTo be continuedー
From MARUNTAー
